T3001

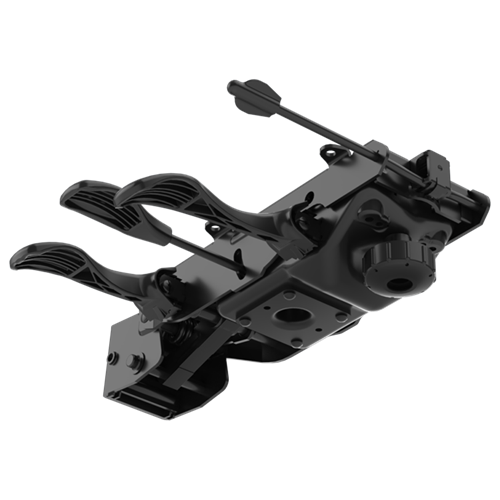

Center Tilt Mechanism

The T3001 mechanism is a responsive and versatile solution designed for use on medium to large size chairs. The mechanism is equipped with an infinite position tilt Lock for independent back adjustment pneumatic height adjustment.

The T3001 series can also be outfitted with several separate back adjustment options to complete a variety of chair requirements.

Specifications
Mechanism Angles	Seat Start angle 3.5° rearward Rearward tilt 20° Front Tilt Stop Angles Activated 3.5° rearward Deactivated 6.75° forward
Arm Brackets	ADJ2 – Adjustable arm brackets AT2 – Fixed arm brackets
Gas Cylinder Tapers	17-4E Extruded 17-4 Taper

Features

Infinite position tilt lock
Heavy duty spring

Options

Front tilt stop

Twist lever forward to limit seat angle to 3.5° rearward.
Twist lever rearward to allow 6.75° forward seating angle.

Integrated auto seat slider options:
- Seat travel: 63.5 mm (2.5 in)
- Levers:
5 handwheel options
4 paddle options
3 side tension options:
- Crank style
- Round handwheel
- Tri-Lobe
6 back upright attachment options
Multiple arm bracket location options
6 separate back attachment options
Bumpers

Standard bumpers – the standard bumper does not allow forward tilt. The mechanism stops 3.5° rearward
Front tilt bumpers - used when 6.75° forward tilt is required without using an extra lever
Front tilt stop bumpers – used when front tilt stop option is chosen.
Tall rear bumpers –used to reduce the seat travel by 10°, 12°, or 17°

Downloads

T3001 Brochure
