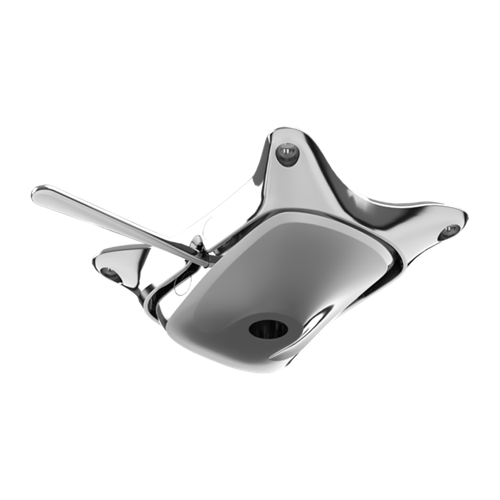

LP-31 ComforTilt

Center Tilt Mechanism

The LP-31 ComforTilt mechanism is the perfect way to add motion to executive, multi-purpose, and home office work chairs, as well as soft seating applications.

LP-31 is a simple yet elegant center tilt mechanism. The refined aesthetic of the polished aluminum LP-31 housing complements any design vision, and is designed to be either fully expressed or easily concealed including optional cable control activation.

Contact Us
Specifications
PivotCenter
Tilt Angles
  • Seat/Back Rearward Tilt: 10°
  • Seat/Back Rest Position: 0°
  • Seat/Back Forward Tilt Option: -4°
Back Lock Angle OptionSeat Angle: 0°
Seat Fixing Dimensions:
  • Aluminum: 153 x 200 mm (6 x 7.9 in)
  • Steel: 70 x 90 mm (2.8 x 3.5 in)

Features

  • Center tilt mechanism
  • Rearward tilt 10°
  • Back lock option
  • Forward tilt function integrated into the design and can be turned on or off during chair assembly, simplifying inventory management
  • Polished aluminum housing with choice of polished aluminum or steel seat plate
  • Adjustable seat height

Options

  • Back Lock
    • Plastic lever for combined height adjustment and locking
  • Seat Support material
    • Polished aluminum housing and seat support
    • Polished aluminum housing and steel seat support
  • Forward Tilt
    • Forward seating mode can be permanently turned on or off during chair assembly
  • Cable Control Integration
    • Allows mechanism and adjustments to be completely hidden within the chair seat for streamlined aesthetic
  • Levers
    • Various lever colors available
    • Aluminum lever for height adjustment
    • Plastic lever for height adjustment and locking

Customizations

  • Levers
    • Custom lever designs
    • Custom lever colors
