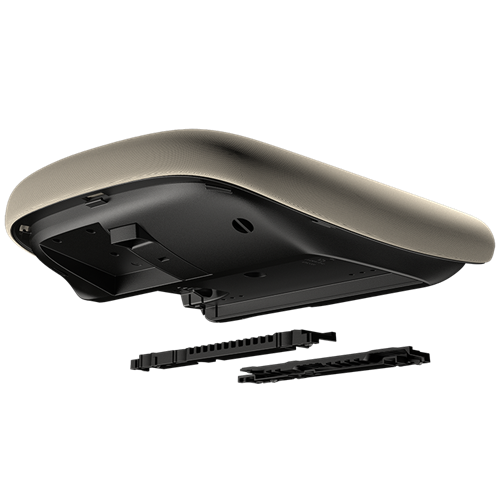

LP-52 Seat

Seat

The LP-52 Structural Seat features a patented quick tensioning drawstring system. Applying upholstery with the LP-52 system does not require special equipment or staples, permitting the repair or replace of the upholstery in the field and extending the useful life of the chair. The LP-52 is compatible with many other L&P components, as well as common industry components.

Specifications
Seat dimensions	483 x 422mm (19 x 16.6 in)
Seat depth position	90 mm (3.5 in): 10 locking positions 70 mm (2.76 in): 8 locking positions 50 mm (1.97 in): 6 locking positions
Upholstery attachment	Standard: Quick-tension drawstring system Combi version: Snap connection upholstery panel
Compliance	ANSI/BIFMA X5.1 and EN-1335

Features

Upholstery attachment by drawstring system (L&P patent) supports simpler assembly, maintenance, and disassembly objectives
The standard configuration includes the Structural Seat
The LP-52 Combi version includes the Structural Seat and an upholstery panel, allowing customers to use staples if needed and supports different seat foam geometry
Accepts most common arm interfaces
Integrated seat slide utilizes a simple rail system that attaches to the mechanism; the adjustment range can be customized to either 90 mm (3.5 in), 70 mm (2.76 in), or 50 mm (1.97 in)
Integrates with the LP-50 Quick Attach System for Arms and Backs
At least 30% of plastic parts are derived from recycled materials

Options

Combi version includes the structural seat and an upholstery panel
With or without seat depth adjustment of up to 90 mm (3.5 in)
Seat depth adjustment range can be set to 90 mm (3.5 in), 70 mm (2.76 in), or 50 mm (1.97 in)

Customizations

Integration with other arm bracket types; no additional bracket needed
Integration with other mechanisms can be considered
Seat slide rails for other mechanisms can be considered
Custom plastic colors

Downloads

LP-52 Seat Brochure
