LP-53 Light Scale Synchro

Synchronized Mechanism

The LP-53 mechanism represents a new generation of synchronized mechanisms, developed with a clear focus on user comfort, seamless integration with contemporary chair design, and sustainability goals.

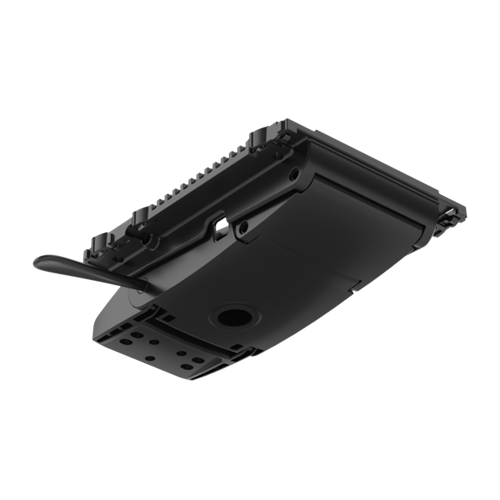

The LP-53 is a sleek, self-weighing mechanism designed to seamlessly integrate with lightly-scaled work chairs. The LP-53 offers greater design freedom through its lightweight construction and refined function. Delivering a performance range perfect for both the dynamic workplace and home office environment, the LP-53 provides a sophisticated yet streamlined solution in the perfect small package.

Contact Us
Specifications
Backrest Recline Angle18°
Seat Recline Angle6°
Tilt Lock1 locking position
Seat Depth Adjustment Range Option75 mm (3.0 in)
Seat Fixing Dimensions200 x 153 mm (7.9 x 6 in)
User Weight Range40 to 100 kg (88 to 220 lb)

Features

  • LP-53’s minimal thickness and compact geometry complements a wide range of seating designs and applications
  • The low visual footprint of LP-53 allows designers to create chairs with a clean, refined appearance without compromising on aesthetics, functionality, or comfort
  • A single multi-function lever controls seat height adjustment and backrest tilt lock (one position) in a simple, ergonomic interface
  • An additional micro-lever allows the user to increase the recline resistance in 4 distinct levels, providing the ease of automatic support with the option to fine tune the experience
  • Designed with an integrated interface to work with the LP seat slide function, providing the ability to add seat depth adjustment without extra components or adapters
  • The rear zone of the mechanism includes a dedicated docking system for backrest mounting, compatible with tool-free, screw-less installation

Options

  • Effortless recline booster lever that allows the user to increase the recline resistance in 4 distinct positions
  • Adaptor for LP-50 Quick Attach System
  • Integrated seat slide for direct attachment to LP-52 Structural Seat

Customizations

  • Custom designed handles and colors
  • Custom designed covers and colors
