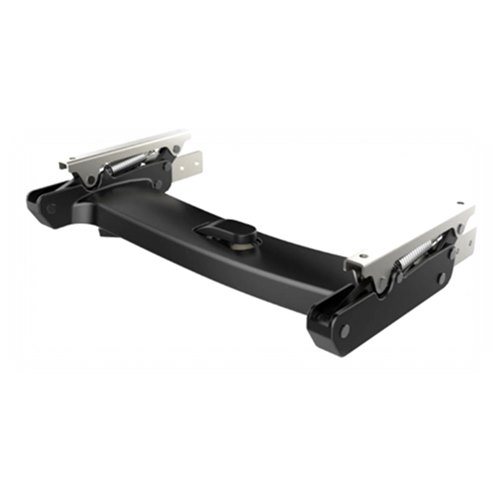

LP-19 EasyFlex

Synchronized Mechanism

LP-19 EasyFlex is an advanced mechanism that provides self-weighing, synchro motion for work chair, multi-purpose, and soft seating applications. The EasyFlex mechanism supports the most demanding design visions due to the slim cartridge construction. The Easyflex can be easily  integrated and hidden in a seat, yoke, or back. It is an ideal choice for a wide variety of applications, but in particular for low profile cushions and mesh seating.

Contact Us
Specifications
PivotSynchro
Synchro Ratio3.3:1
Backrest Recline Angle20°
Seat Recline Angle6°
Tilt Lock1 locking position
Seat Fixing Dimensions260 x 77 mm (10.24 x 3.03 in)
User Weight Range50 to 110 kg (110 to 243 lb)
ComplianceANSI/BIFMA X5.1 and EN-1335 Tested

Features

  • Self-weighing synchronous motion
  • Can be utilized to add passive motion to a wide range of seating applications including soft seating and four leg chairs
  • Seamless design integration due to slim cartridge construction
  • Customized seat support

Options

  • Front lock
  • Choice between standard and lateral fixation backrest support
  • Integrated seat slider support
  • Custom seat support can be tooled in plastic or aluminum

Customizations

  • Connection between cartridges and seat/yoke/back are custom to each customer’s design
