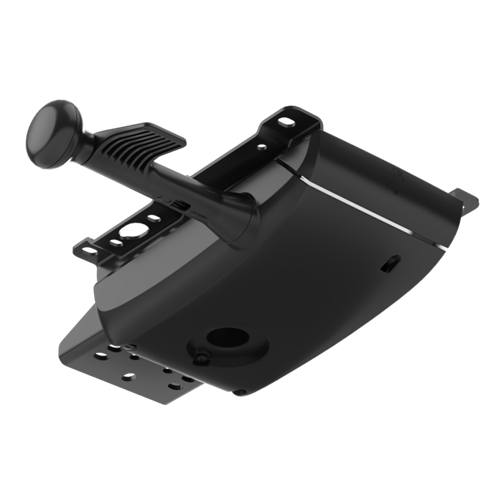

LP-24

Center Tilt Mechanism

The LP-24 Self-Weighing Synchro Mechanism is a versatile and highly customizable chair mechanism platform designed to adapt to almost any work chair design. Its industry leading self-weighing function adjusts to each user without the need for manual tension adjustment. LP-24’s unique engineering provides a supportive recline for a wide variety of users while minimizing uncomfortable knee rise.

The LP-24 mechanism design allows clients to differentiate their work chair solutions through the use of the unique quick coupling system for handles and covers. This system easily accommodates custom handles, covers, and colors, providing a variety of possible aesthetics from a single mechanism platform. This approach helps our customers save the time and expense of creating multiple new mechanisms.

Contact Us
Specifications
PivotSynchro
Synchro Ratio3:1
Backrest Recline Angle20°
Seat Recline Angle6.5°
Forward Seat Tilt Angle Option5°
Tilt Lock3 locking positions
Seat Depth Adjustment RangeBolt-on 60 mm (2.4 in), optional kit 62 mm (2.4 in)
Seat Fixing Dimensions200 x 153 mm (7.9 x 6 in)
User Weight Range50 to 110 kg (110 to 243 lb)
ComplianceANSI/BIFMA X5.1 and EN-1335

Features

  • Self-weighing synchro mechanism
  • Thin profile supports variety of designs and maximizes seat height range
  • Cable or handle activation
  • Factory initial setting of the spring to adapt to different chair sizes and tension specifications
  • 3 back lock positions
  • Height adjustment and tilt lock in a single bi-functional lever
  • Bolt-on seat depth adjustment eliminates need for two separate mechanism models
  • Provides a supportive, natural recline experience for users weighing 50 to 110 kg (110 to 243 lb)

Options

  • Fine tuning tension knob allows the user to fine tune the recline tension to their personal preference.
  • Integrated forward seating device (negative tilt) 5° of seat support
  • Optional 4 position back lock
  • 5 position seat slider kit with 70 mm (2.8 in) travel
  • Side rails for LP-52 Structural Seat mounting
  • Side rails with integrated cable activation
  • Seat slider kit with integrated cable activation
  • Integration with the LP-50 Quick Attach System for Backs

Customizations

  • Custom factory pre-set tension adjustment
  • Bespoke back option for integrated back attachment
  • Custom designed handles and colors
  • Custom designed covers and colors
  • Custom designed cable controls
