LP-11

Synchronized Mechanism

The LP-11 is a synchronized mechanism with side-accessible Quick Adjust Tension. This mechanism has been designed to maintain a constant tension throughout the range of travel, providing a natural and supportive recline for a broad range of users. The full tension range from minimum to maximum is easily managed with less than one complete turn of the side-activated tension knob.

The LP-11 mechanism design allows clients to differentiate their products through custom handles and covers, supporting a variety of aesthetics from one mechanism platform. The LP-11 mechanism can be supplied with detached levers and cover to provide maximum packaging density and to minimize inventory. The handles and cover easily assembled using a quick coupling system.

Designed to satisfy critical demands for robustness and reliability, the LP-11 mechanism complies with the most demanding test standards of the industry.

Contact Us
Specifications
PivotSynchro
Synchro Ratio2:1
Backrest Recline Angle23°
Seat Recline Angle11°
Optional Forward Seat Tilt Angle-3° seat tilt, -6° back tilt
Tilt Lock5 locking positions
Seat Depth Adjustment Range72 mm (2.8 in) of travel; ability to limit to 50 mm (2.0 in). A 62 mm (2.4 in) travel range is also available.
Seat Fixing Dimensions200 x 153 mm (7.9 x 6 in)
User Weight Range50 to 120 kg (110 to 265 lb)
ComplianceANSI/BIFMA X5.1 and EN-1335 tested

Features

  • Synchro mechanism with 1 turn Quick Adjust Tension
  • 2:1 back to seat ratio
  • Wide tension range comfortably supports users weighing 50 to 120 kg (110 to 265 lb)
  • Cable or handle activation
  • Can ship with knocked-down Quick Attach levers and cover
  • 5 tilt lock positions with anti-kickback
  • Bolt-on seat depth adjustment eliminates need for two separate mechanism models

Options

  • 6 position seat slider kit with 72 mm (2.8 in) of travel; ability to limit to 50 mm (2.0 in). A 62 mm (2.4 in) travel range is also available.
  • Integrated forward seating device (negative tilt) 3° of seat angle and 6° of back angle with 3 back lock positions
  • Compatible with LP-50 Quick Attach System for Backs
  • Compatible with LP-40 Back Angle Adjustment
  • Side rails for LP-52 Structural Seat mounting
  • Cable control integration including side rails and seat slider kit
  • Shipping with or without handles and covers attached

Customizations

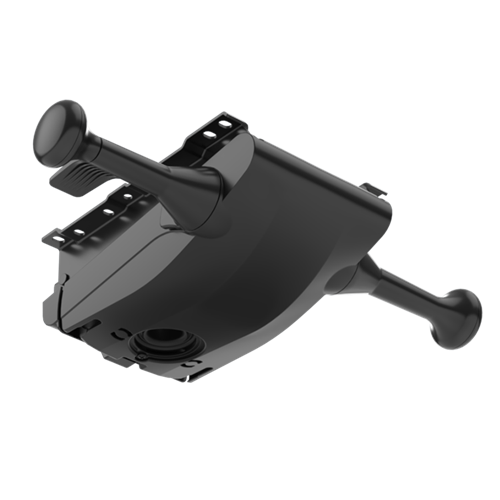

  • Bespoke back option for integrated back attachment
  • Custom designed handles and colors
  • Custom designed covers and colors
  • Custom designed cable controls
